Amazing molds are the key
to slider construction!
-

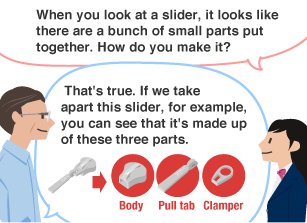

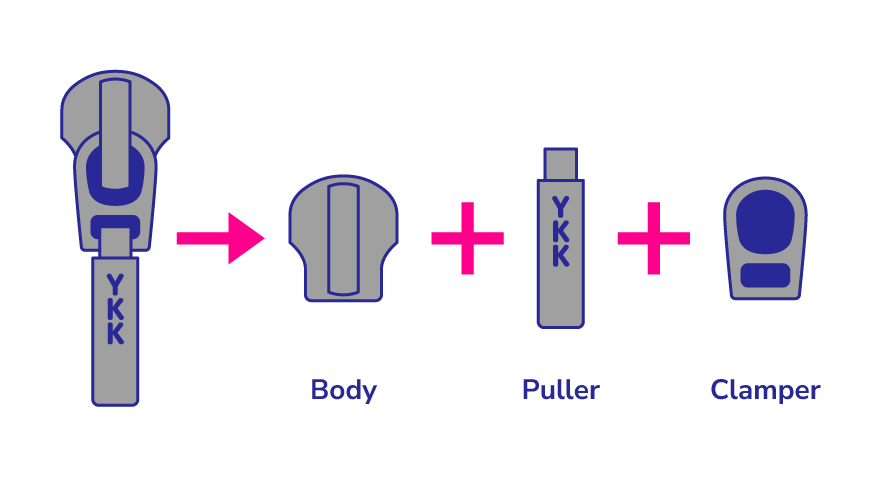

The parts that make up a slider!
-
For example, if you take this slider apart, you will see that it is made up of three combined parts.
-
The shape is created
with a die casting method! -
Most parts are made by pouring molten metal or plastic into molds carved into the parts’ respective shapes.
This manufacturing method is called “die casting.”
-

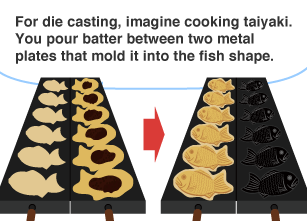

Die casting looks like taiyaki making!
-

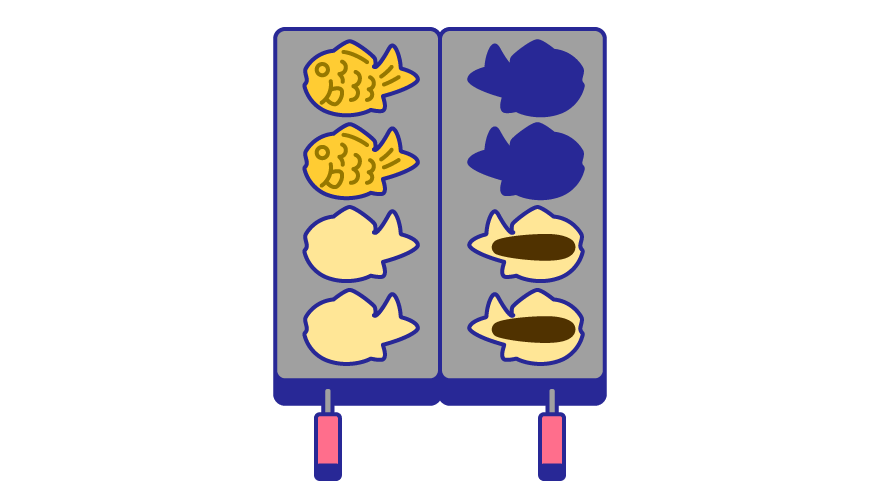

Die casting is similar to making taiyaki, which everyone is familiar with.
Taiyaki is made by pouring batter between two iron griddles, carved into the shape of a sea bream.

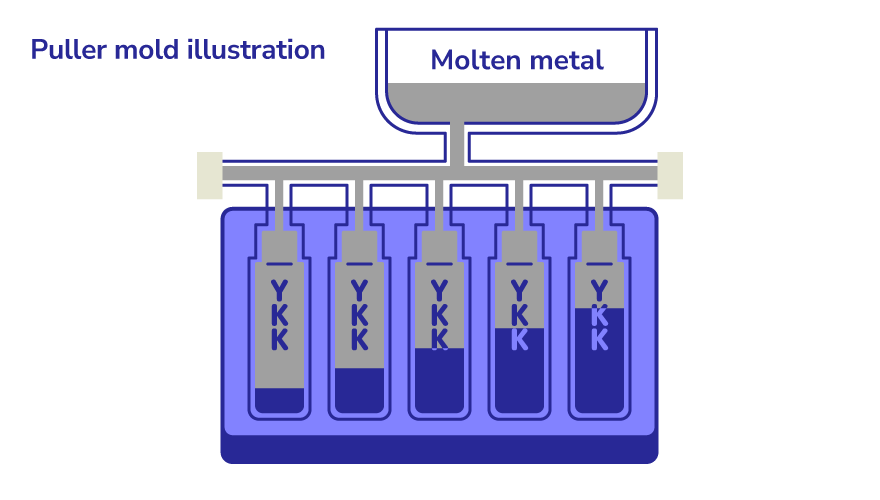

Similarly, die casting involves putting two molds together and pouring material into them to create parts.
-

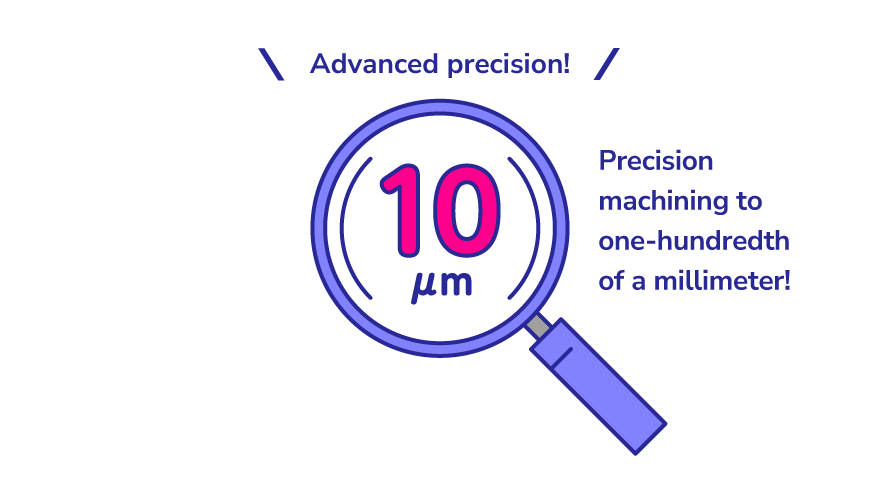

Mold precision to one-hundredth of
a millimeter! -
Molds are manufactured to extremely precise measurements. They need to be precise to within a mere one-hundredth of a millimeter!
-

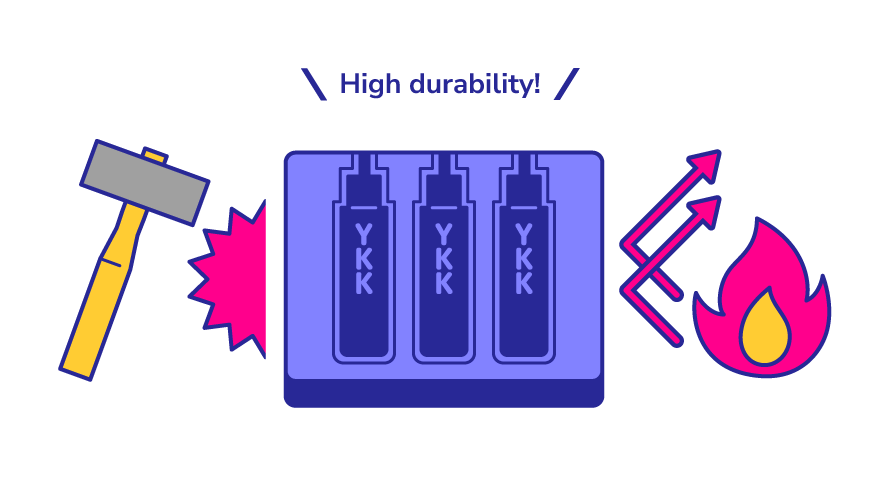

Strong and long-lasting! The power of molds.
-
Furthermore, the molten metal and plastic are extremely high-temperature! To maintain this level of precision, robust and durable molds are required. Mold designs are carefully considered with the material properties in mind.
